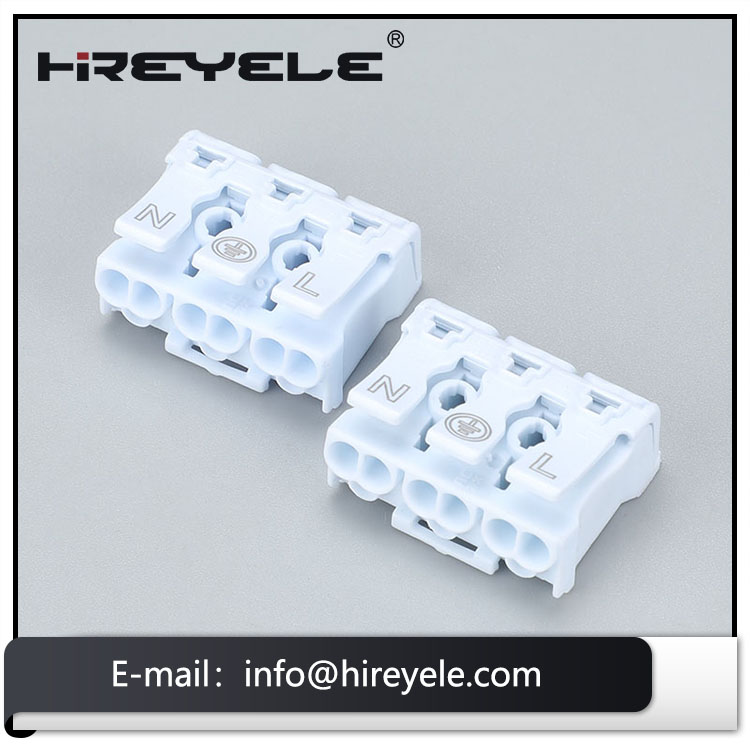

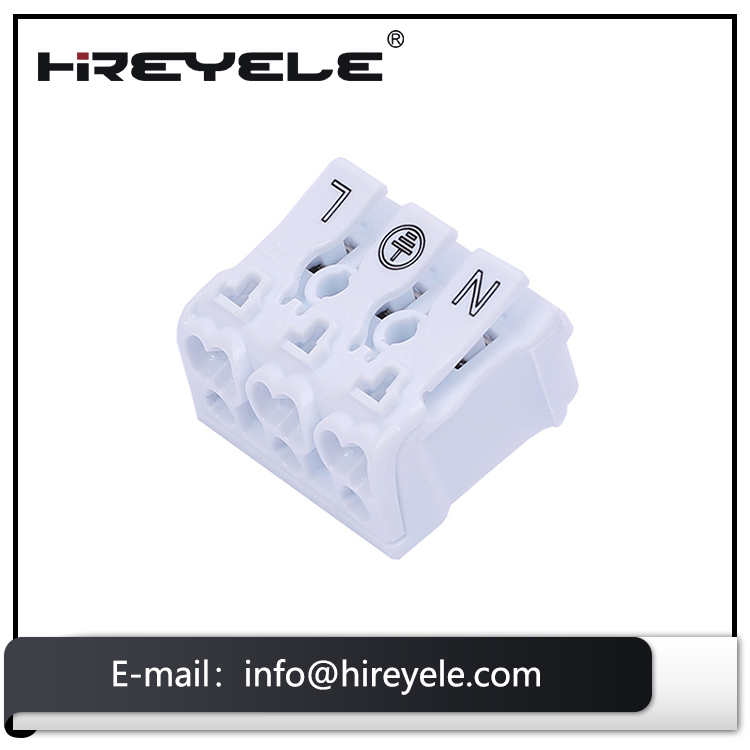

● Product name: 923 Push-in Wire Connectors
● Pin: 3 PIN
● Type: Butt Wiring Connector
● Model: HR923-3
● Ampere/Voltage: 16A / 450V
● Housing Material: PA66, UL94V-0
● Color: White
● Wire Range: 22-14 AWG
● Temperature: T110(IEC) / T75(ETL)
● Application: Lighting fixtures,Electrical Installations,Junction Boxes etc
● High Quality - The housing is made of high quality PA66 insulating material, corrosion resistance, high pressure resistance, high temperature resistance.
● Good Conduction - The pressing piece is made of conductive steel spring, with good elasticity, strong toughness, high power-on rate.
● Easy to use - 923 spring wire connector only need three steps : Hold down the item and press the terminal, and then put the peeled wires into the terminal, finally loose hands. Simple operation, saving time and effort. ( PS: L end is connected to the live wire and N terminal is connected to the neutral wire )
● Application - 923 quick connectors are widely used in lighting, motors, electric controls, power supplies, electrical appliances, and machinery.
923 electrical wiring connectors are our hot product, they belong to quick connector, butt wire connector and push-in wire connector. Besides, 923 quick connectors are made of PA66 insulating material and conductive steel spring (16A/450V), so 923 quick wire connectors could be used for most circuit. Usually, it's matched with electrical waterproof junction boxes IP67 IP68.
Butt Wiring Type Lever-Nut Compact Splice Connectors are usually used for circuit inline, such as 2 in 2 out (HR212), 2 in 4 out (HR424), 3 in 6 out (HR436) etc. Its function is similar with 221/222 lever nut wire connector, easy to install, safe and reusable.
Zhejiang Hairui Electronic Technology Co.,Ltd
HIREYELE is professionally specialized in manufacturing and exporting Wire Connectors, Lamp Holders, Waterproof Junction Box Connectors,Housing & Terminals,Cable Assembly, Home Appliance Wire Harness, Electric Switches, Guitar Pedal Parts,Sockets & Plugs and other Lighting Fittings & Low Voltage Electrical Products. All the export products have passed CE/CB/UL/Rohs certifications.
We do have very high demands on quality:
1.Quality is our culture.
2.A customer is the most important person to us.
3.100% customer satisfaction is our goal.
4.We appreciate any feedback from our customers.
Doing our daily work according these golas will ensure proper results for our customers.
We are making great efforts to achieve win-win situation and sincerely welcome you to join us.
Packing & Transport
1.Q: Are you manufacturer or trade company?
A: We are manufacturer and specialized in terminal block for 17 years.
2.Q: Do you have catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have.Please contact us on line or send an E-mail to us
3.Q: Can you provide samples ? Are the samples free ?
A: Yes,we can provide free samples if quantity not too much but delivery fee need pay collect.
4.Q: What kind of payment do you accept ?
A: We accept T/T(50% as deposit, and 50% balance after you receive copy of B/L) L/C.
5.Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,UPS,TNT,EMS.That's a Door to Door service .For big packages , we will send them by Air or By sea.We will use good packing and ensure the safety.We will be responsible to any product damage caused on delivery.
6.Q: I need your price list of all your products ,do you have a price list ?
A: We do not have a price list of all of our products . Because we have thousands of items ,and price are always changing because of the material cost and market condition .If you want to check price of our products , please feel free to contact us .We will send quotation for you soon.
7.Q: I can't find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products ,but not all.So just let us know what product do you need ,and how many do you want.If we do not have it ,we can also design and make a new mould to produce it.For your reference , making a ordinary mould will take about 35-45days.
Any requirements or question ,welcome to "Send" us an e-mail (info at hireyele dot com )
It's our great honor to do services for you! You also can get the FREE SAMPLES soon .
