Zhejiang Hairui Electronic Technology Co., Ltd

Lever Wire Connector 1 Conductor Butt Wire Connector Compact Splicing Wire Connector
  • Lever Wire Connector 1 Conductor Butt Wire Connector Compact Splicing Wire Connector
  • Lever Wire Connector 1 Conductor Butt Wire Connector Compact Splicing Wire Connector
  • Lever Wire Connector 1 Conductor Butt Wire Connector Compact Splicing Wire Connector
  • Lever Wire Connector 1 Conductor Butt Wire Connector Compact Splicing Wire Connector
  • Lever Wire Connector 1 Conductor Butt Wire Connector Compact Splicing Wire Connector

Lever Wire Connector 1 Conductor Butt Wire Connector Compact Splicing Wire Connector

  • Product Item:HR211
  • Category:Push Wire Connector
  • Views:1349
  • Wiring Type: Side-Entry
  • Material : PA66 UL 94V-0 grade
  • Voltage: 600V
  • Current: 32A
  • Product Manual:Lever Nut Assortment Butt Wiring Terminal Block 1 Port Compact Wire Connectors
BASIC INFO
Product Description

Lever-Nuts Butt Wire Connectors are developed base on 221/222 lever-nut push wirer connectors, it's made of high quality material, with the advantages of long life, corrosion resistance, high-temperature resistance and aging resistance. And lever butt wire connectors are also much convenient to install, only strip the wire about 10-12mm, then plug wire into connector, job done. Besides, lever-nut docking wire connector function is simple and safe, it could prevent electrical leakage effectively. So it's more better than traditional wire connectors.

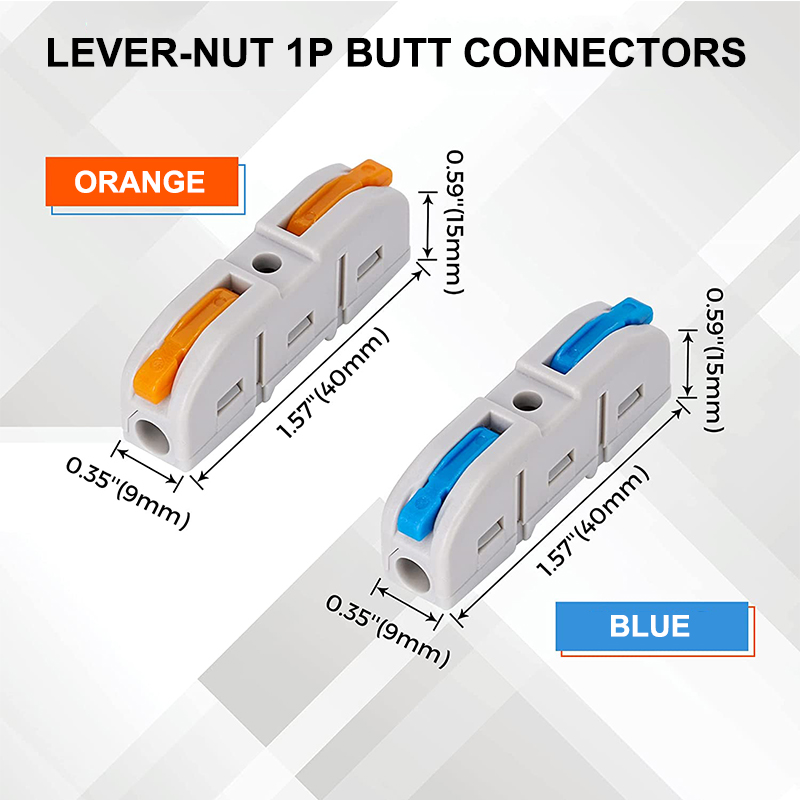

Butt Terminal Block HR211 Lever-Nut Wire Connectors :
● 【Safe and Durable】HR211 Lever-nut docking connector housing is made of nylon PA66, which have flame retardant and high temperature resistance, reducing potential safety hazards. The conductor is tinned with pure copper, strong conductivity. Built-in stainless steel spring buckle, strong elasticity, not easy to fall off.

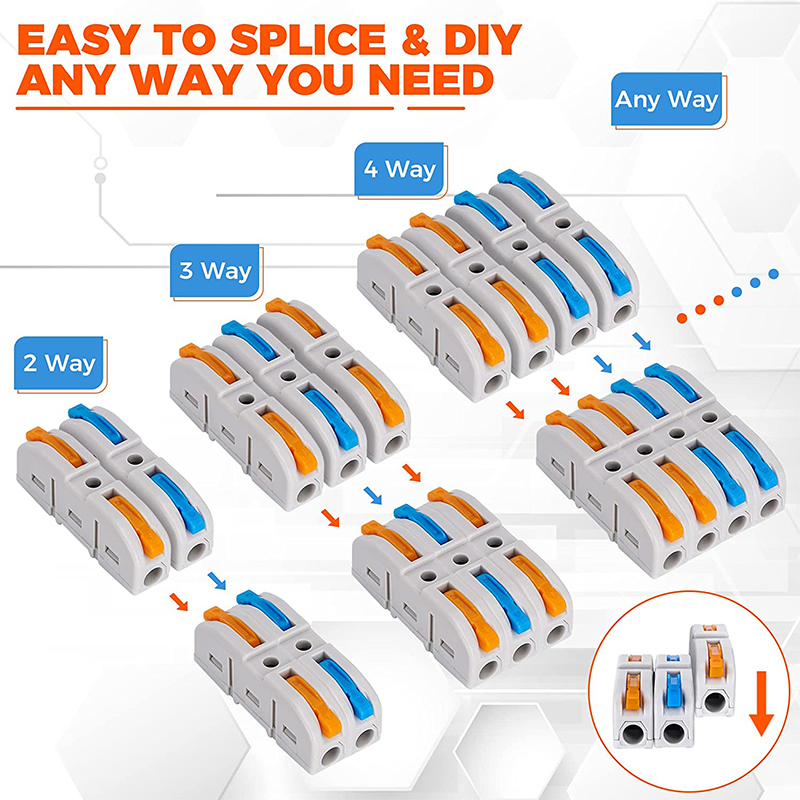

● 【High Efficiency】HR211 compact splice butt wiring connector can simplify circuit design. When you combine the wires or need to jumper, you don't worry about the twist between the wires, the lever wire connector will make the work much easier and neater.
● 【Universal Compatibility】HR211 Lever-nut butt wiring connectors are suitable for 28-12AWG wires.
● 【Easy Installation】1, the wire should be stripped 10 to 12mm. 2, pull the lever to 90° and insert the wire. 3, place the back of the wire clip. Job done.

Lever-Nut Butt Wire Connectors are much applicable to circuit inline, it could help you solve the wire clutter. Sure, the lever-nut butt wire connector application is nearly same as 221/222 lever-nut compact splice wire connectors, it's also widely applied for waterproof junction box, electrical control, home appliance, power supply, LED lighting etc. Usually, lever nut butt wiring connectors are used for building and household wiring.

Recommend Product


Push in Wire Connectors could easily, quickly and safely connect solid, stranded and flexible wires, no tool required. It's a new style of connector, which means that only simply strip a minimal amount of insulation from the wire before inserting it into one of the holes in the connector. Once in place, the wire will be locked into place. Push-in wire connectors are available in various designs.

Company Profile


Zhejiang Hairui Electronic Technology Co.,Ltd

HIREYELE is professionally specialized in manufacturing and exporting Wire Connectors, Lamp Holders, Waterproof Junction Box Connectors, Housing & Terminals, Cable Assembly, Home Appliance Wire Harness, Electric Switches, Guitar Pedal Parts,Sockets & Plugs and other Lighting Fittings & Low Voltage Electrical Products. All the export products have passed CE/CB/UL/Rohs certifications.
We do have very high demands on quality:
1.Quality is our culture.
2.A customer is the most important person to us.
3.100% customer satisfaction is our goal.
4.We appreciate any feedback from our customers.
Doing our daily work according these golas will ensure proper results for our customers.
We are making great efforts to achieve win-win situation and sincerely welcome you to join us.

Certification


Packing & Transport


FAQ

1.Q : Are you manufacturer or trade company?
A: We are manufacturer and specialized in terminal block for 17 years.

2.Q : Do you have catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have.Please contact us on line or send an E-mail to us.

3.Q : Can you provide samples ? Are the samples free ?
A: Yes,we can provide free samples if quantity not too much but delivery fee need pay collect.

4.Q : What kind of payment do you accept ?
A: We accept T/T(50% as deposit, and 50% balance after you receive copy of B/L) L/C.

5.Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,UPS,TNT,EMS.That's a Door to Door service .For big packages , we will send them by Air or By sea.We will use good packing and ensure the safety.We will be responsible to any product damage caused on delivery.

6.Q : I need your price list of all your products ,do you have a price list ?
A: We do not have a price list of all of our products . Because we have thousands of items ,and price are always changing because of the material cost and market condition .If you want to check price of our products , please feel free to contact us .We will send quotation for you soon.

7.Q: I can't find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products ,but not all.So just let us know what product do you need ,and how many do you want.If we do not have it ,we can also design and make a new mould to produce it.For your reference , making a ordinary mould will take about 35-45days.

Any requirements or question ,welcome to "Send" us an e-mail ( info@hireyele.com or lian@hireyele.com ). It's our great honor to do services for you !
